NEM II Module



FPGA Module for Altera NIOS II Softcore Development



FPGA module for developing Systems on programmable Chips with Altera NIOS II Softcore (SopC development).

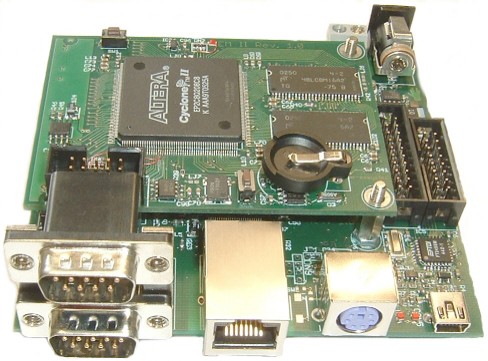

NEM II Module

  • NIOS II 32 Bit system up to 100 MHz system clock
  • Cyclone EP2C8 with 40% free LEs (when adapted to Playground)
  • 32 MByte SDRAM (max. 128 MByte)
  • EPCS4 or EPCS16 for config and system software
  • JTAG-Interface
  • RTC with Backup
  • SD-Card connector
  • 62 IOs and 2 Clks on SMD Connector
  • Voltage regulator for FPGA-Core
  • Size: 80 x 58 mm

Playground

  • 10/100 MBit Ethernet
  • CF-Card
  • USB Device 12 MBaud
  • 2 UARTS
  • Keyboard-Interface (PS/2)
  • LCD connector for HD44780
  • LCD connector for T6963
  • Voltage regulators for 3.3 V, 5 V and LCD BIAS DC/DC
  • Size: 100 x 95 mm
